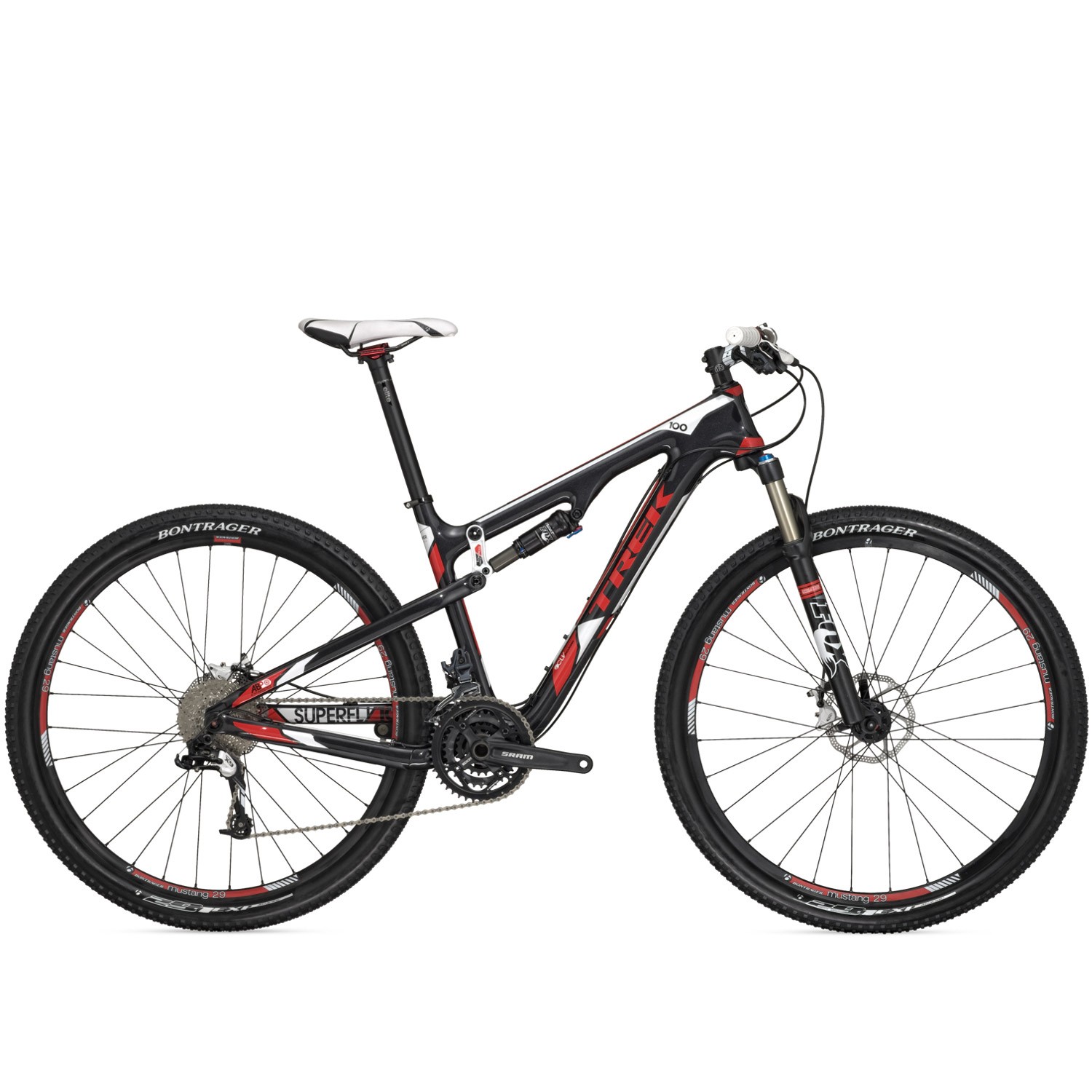

Cores Onyx Carbon/Red

Quadro OCLV Mountain Carbon main Quadro / swingarm, Carbon Armor, ABP Convert, Flow Mold Carbon swing link, G2 Geometry, E2 tapered head tube, replaceable derailleur hanger, 110mm travel

Suspensão Fox Evolution Series 32 Float 29 RL, air spring, lockout, rebound, custom G2 Geometry, 51mm offset crown, E2 tapered steerer, 100mm travel

Amortecedor Fox Performance Series Float RP-2 w/ProPedal, rebound, 7.75x1.75, tuned by Trek in California

Tamanhos 15.5, 17.5, 19, 21, 23

Rodas Bontrager 28-hole FCC alloy front hub, Shimano M525 32-hole rear hub, Bontrager Mustang Disc 29 rims, Tubeless Ready

Pneus Bontrager 29-1 Expert, 29x2.2

Manípulos de mudança SRAM X7, 10 speed

Desviador da Frente SRAM X7, direct mount

Desviador de trás SRAM X9

Pedaleiro SRAM S1000, 44/33/22

Cassette Shimano HG62-10 11-36, 10 speed

Pedais n/a

Selim Bontrager Evoke 2, chromoly rails

Espigão de selim Bontrager Rhythm Elite, 31.6mm, zero offset

Guiador Bontrager Race Lite Low Riser, 31.8mm, 5mm rise, 9 degree sweep

Avanço Bontrager Race X Lite, 31.8mm

Caixa de direcção FSA NO.57, E2, ACB sealed bearings

Travões Avid Elixir 7 hydraulic disc brakes

Punhos Bontrager Race Lite, lock-on

Extras Trek fork / shock sag meter, Bontrager shock pump
